Manual for
BARMOBILE
BARMOBILE, Méhari
version 2003. Sounding the horn of the Méhari (3 long signals)
announces that the bar is open. One long signal closes the bar.
Introduction:
BARMOBILE is a mobile non-profit bar that enables persons to establish
a bar in local situations, have a drink, meet, listen to music, etc., in
any place they find suitable. It can be carried, mounted on a cart, in a
car, on a bicycle trailer, or be transported in other ways.

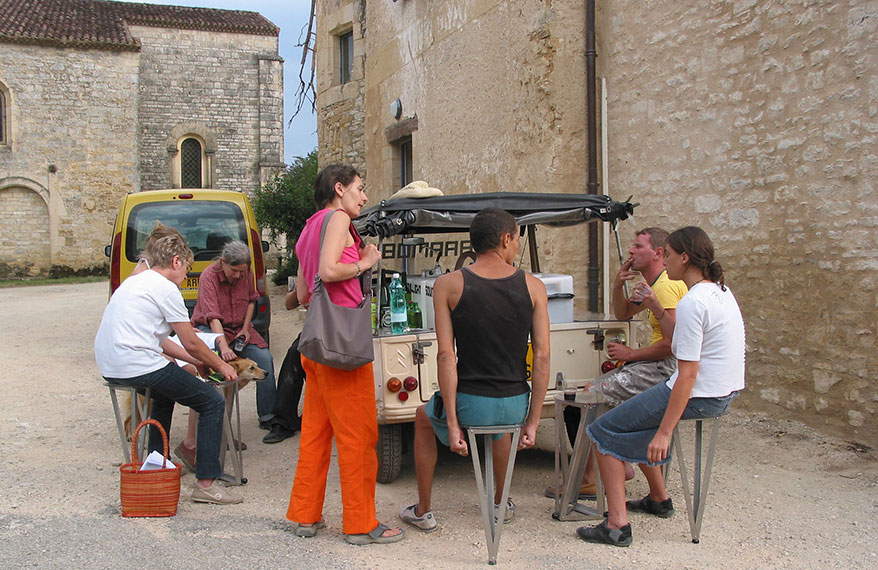

BARMOBILE, Méhari version, Les Arques, France 2003
Construction:
The BARMOBILE is constructed from prefabricated plastic tanks that are modified
to perform basic bar tasks. In addition, a toilet is available. These functions
constitute the main BARMOBILE module. This module, which fits the EUR pallet
standard, can be transported by different means.

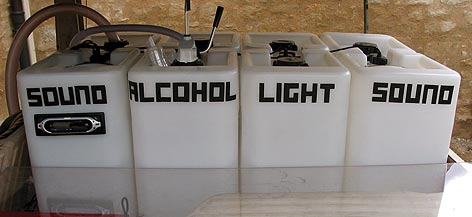

Sound:
A car radio and two water resistant loudspeakers make up the sound system.
A special soundtrack was made for BARMOBILE. One can also bring other audio
CDs.
Alcohol dispenser:
The alcohol dispenser can be filled with wine or drink mixtures of different
sorts. If the adjacent water container is filled with fresh water, the water
will keep the contents of the alcohol dispenser cool for a long time.
Light:
The light is switched on next to the loudspeaker at the sound module.

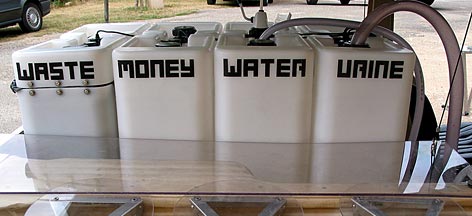

Waste collector:
Inside the waste collector there is an exchangeable plastic bag. It is important
not to put any cigarettes or ashes in the waste container.
Money collector:
Money for drinks can be put through the hole in the tank. BARMOBILE is
a non-profit bar. The cost of the drinks should only cover the cost of
running the bar: refill of drinks, plastic cups etc.
Water container:
Water is refilled through the large hole. The contents of the water container
mixed with urine must not exceed what can be contained in the urine collector.
Urine collector:
The contents of the urine tank (urine and water) can be used as fertilizer
because of its high content of nitrogen.

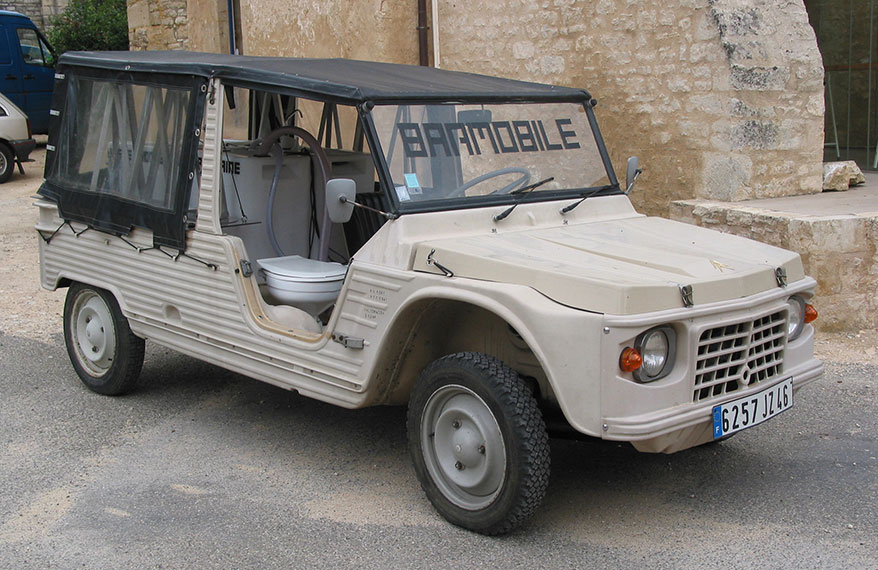

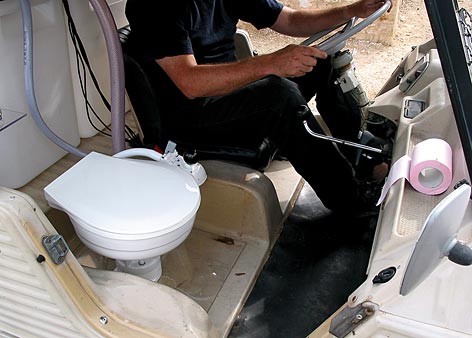

Toilet, mounted in place of the passenger seat (Méhari version).
Toilet:
If the BARMOBILE is installed in a car, the toilet can be mounted in the
place of the passenger seat. In a non-car BARMOBILE situation, the toilet
can be placed directly on the ground. It is important to follow the instructions
on how to use the toilet. For hygienic and practical reasons, it is intended
for urinating only. The toilet is connected to the water and urine containers.
After urinating, one pushes the handle next to the toilet seat to the left,
and the toilet will be filled with water from the water container. After
pushing the handle to the right, the toilet can be emptied using the hand
pump. Leaving the handle in the left position may cause the toilet to overflow.

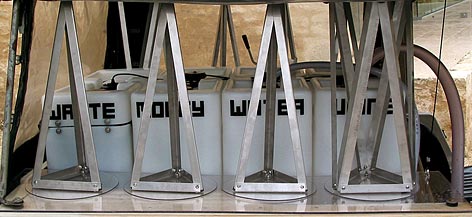

Bar stools/tables:
The bar stools can be used alone or in combinations with tables. When not
in use, one end of the seat can be inserted under the bar counter (Méhari
version). When the BARMOBILE is transported, the bar stools and tables are
standing upside down on the counter or are inserted under the plastic tanks.

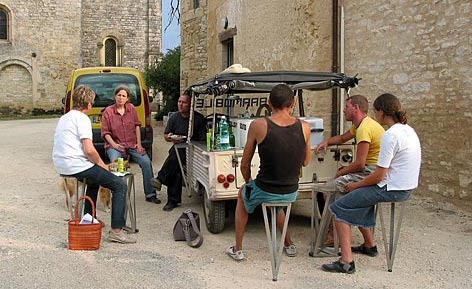

When the bar
is closed, the bar stools and tables can stand upside down on the
counter (Méhari version).
Extensions:
Refrigerators and other equipment can be built into the system provided
one has access to a stable supply of electricity. When BARMOBILE is implanted
in a car, the engine of the car can be modified to run on alcohol avoiding
the use of fossil fuel.
Using BARMOBILE:
BARMOBILE can be used by anybody for non-commercial purposes
Those who open and run the bar provide drinks and refill glasses and water.
The price for drinks should cover the direct costs of running the bar only.
Visitors to BARMOBILE are also welcome to bring their own drinks, food,
etc
After use, the counter must be cleaned with a moist cloth, and the waste
and urine tanks must be emptied. The contents of the urine tank can be used
to fertilize soil
The person who borrows BARMOBILE is responsible for bringing it back in
the same condition. It is strongly recommended that anybody who uses BARMOBILE
read the manual carefully.
Maintenance:
The liquid tanks must be rinsed and the bar stools and tables must be wiped
with a moist cloth. The toilet must be cleaned as needed.
Component list:
8 tanks in low density PE, height: 85 cm, width: 29 cm, length: 38 cm
12 V / 11 W light bulb
Battery: 110 Amperehours, 12 V (battery charger: 50/60 Hz/ 115 W)
Car radio with CD player
2 pc water resistant loudspeakers 100 W
Water tap (boat type)
Waste bags, PE-plastic
Tables: 6 pc struts in stainless acid resistant steel, 110°, lengths
20 and 56.5 cm, 3 mm polycarbonate discs Ø 28 cm
Bar stools: 6 pc struts in stainless acid resistant steel, 70°, lengths
20 and 56.5 cm, 3 mm polycarbonate discs Ø 28 cm.
Letters: black tape
Rubber, elastic strings, electrical cord, bolts and nuts
Porcelain toilet (boat type), manual flush control and self-priming pump.
Méhari version:
1 pc Citroen Méhari, model 1972
1 pc fire extinguisher
2 pc counters of 3 mm polycarbonate, length 134 cm, width 37 cm.

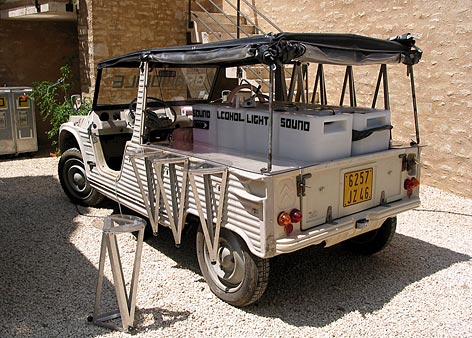

BARMOBILE, Méhari version 2003

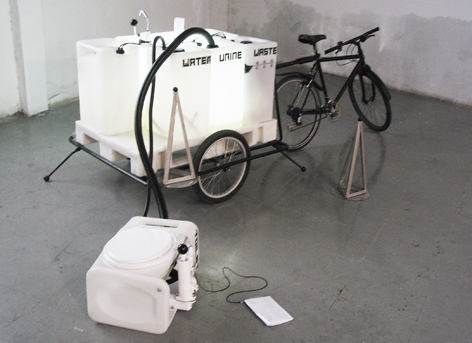

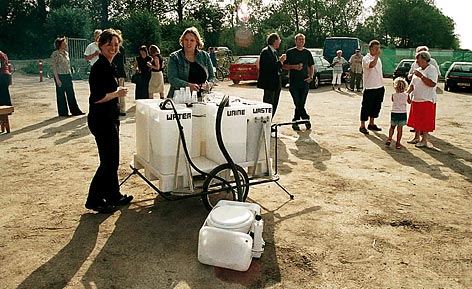

Cart version:
1 pc cart of welded steel tubes with 2 wheels and 4 support legs
1 pc pallet in polyethylene and polyurethane, 120 x 80 cm
1 pc bicycle.

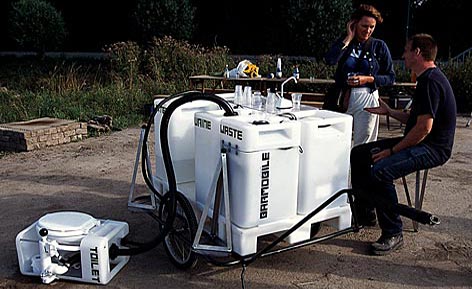

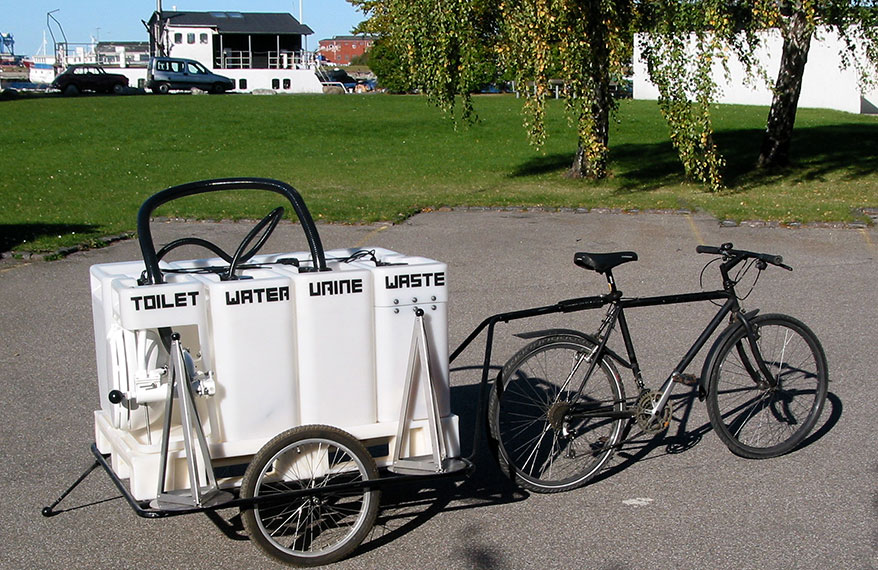

BARMOBILE, cart version with bike.
